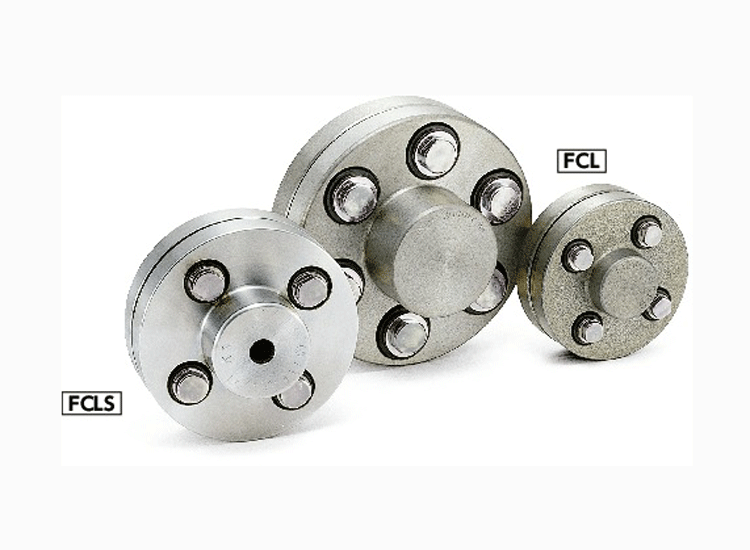

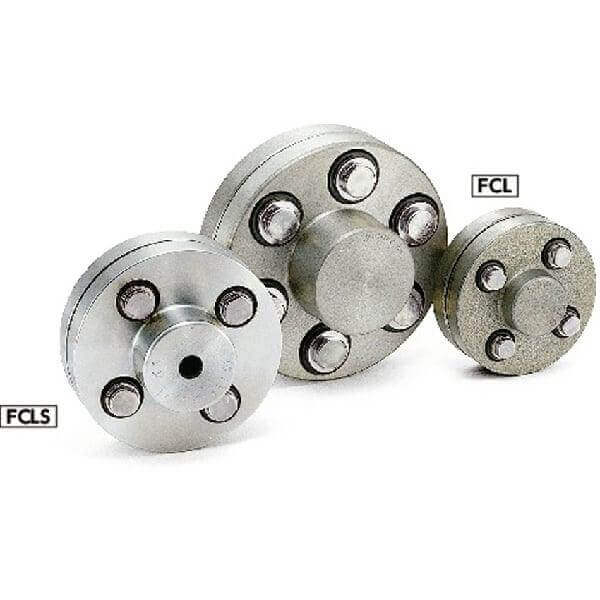

The NBK FCL-160 is a flexible flanged shaft coupling engineered in Japan for smooth, reliable power transmission. Built to JIS B 1452-1991 standards, it’s designed for quick installation, easy maintenance, and excellent misalignment handling. Ideal for industrial equipment where quiet operation and reduced wear are a must.

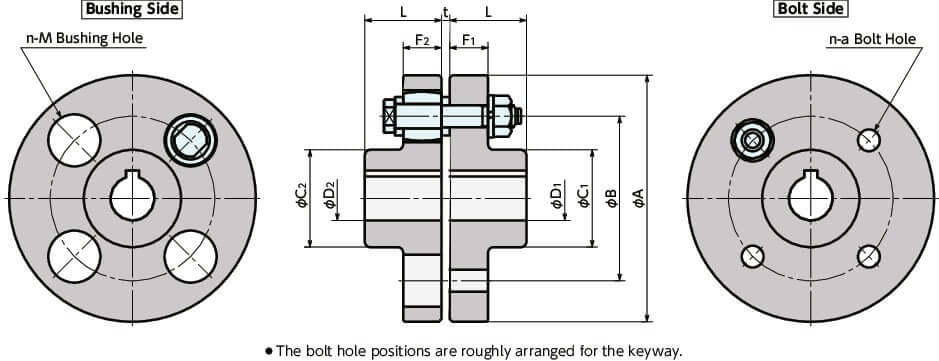

✅ Type: Flexible flanged shaft coupling ✅ Outer diameter (A): 160mm ✅ Total length (L): 56mm ✅ Hub center-to-end (C1/C2): 80mm each ✅ Bolt circle diameter (B): 115mm ✅ Flange thickness (F1/F2): 18mm each ✅ Bolt hole quantity: 8 ✅ Bolt size: M14 ✅ Bolt pitch diameter (a): 32mm ✅ Keyway width (t): 3mm ✅ Bolt hole spacing (B): 64mm ✅ Country of origin: Japan ✅ Quantity: 1 coupling
